Euromac punching machines meet the demand for high-performance, high-output units while also cutting operating costs
Features
Built on a frame with an increase in dimensions enables the machine to operate with higher speeds, ensuring greater stability and working precision.
Our machine frame is a normalized nodular cast iron monoblock in Meehanite® with 700N/mm2, designed with FEM (Finite Element Method), punching head directly built into the monoblock frame. In practical terms this means a more robust (no welding points), precise and reliable structure being at the same time compact, hence using less floor space and allowing flexibility in loading different sheet sizes.
Tooling flexibility beyond conventional means

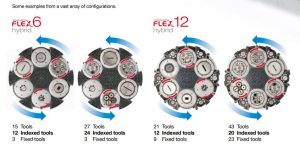

Choose the setup you need: from Single tool (A, B, C or D up to Ø 88,90 mm) to Multitool. Why talk about number of “stations”? What you need is the flexibility to easily and quickly setup your machine with the proper tools needed for your job. Euromac gives you this flexibility, we talk about number of “tools”.
FLEX Hybrid System
Which one is better Electrical or Hydraulic? Why don’t get the best of both systems? Our unique Hybrid System which we call Flex (2 patents pending) has the power of the hydraulics combined with the precision of the electronic control. Low power requirement of only 8,5 kw and averaging only 4,5 kw while punching. Besides being able to set the length of up and down stroke, the Flex System for each tool lets you set:
- Hit rate from 10 to 2000 Hits/min
- Acceleration/Deceleration of ram movement
- Dwell time
Thanks to the Flex System, any Euromac owner now commands unlimited forming capabilities as well as the tools to process any application in a fast, reliable and cost efficient manner.
Innovative Autoindex System
The unique direct drive tool rotation in the Euromac autoIndex stations reduces mechanical components and adds strength, resulting in increased reliability and reduced maintenance. This improves productivity while reducing cost (patented).
Multiindex: Index stations are capable of index (i.e. rotate) with both single tools or our XMTE 4, XMTE 6 and XMTE 10 Multitools.
