Top Bender Series

Features

Top Bender Series Capacities

TB050

Tube (Min.) ¼”
  (Max.) 2 ½”
Pipe (Max.) 2” Sch. 40
Centerline Radius (Min.) 2 x O
  (Max.) 11 7/8”
Degree of Bend   0-210”
Bending Speed   1.2 RPM
Programming   One touch bend angle control with spring back
Material Positioning Table   Available
Voltage   220V 1ph
Length, Width, Height   27” x 20” x 39”
Weight   430 lbs.

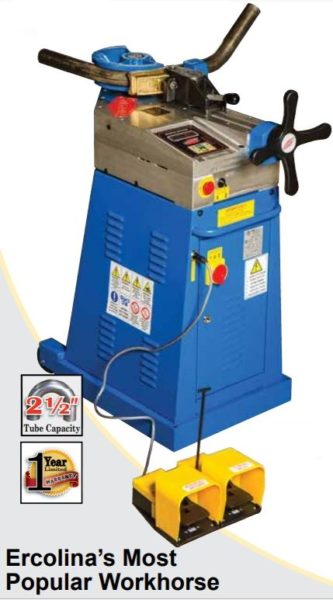

TB060

Tube (Min.) ¼”
  (Max.) 2 ½”
Pipe (Max.) 2” Sch. 40
Centerline Radius (Min.) 2 x O
  (Max.) 15”
Degree of Bend   0-210”
Bending Speed   1.7 or 3.4 RPM
Programming   One touch bend angle control with spring back

(30) Programs

(9) Bends per program

Material Positioning Table   Available
Voltage   220V  or 440V 3ph
Length, Width, Height   27” x 15” x 36”
Weight   430 lbs.

TB100

Tube (Min.) ¼”
  (Max.) 4”
Pipe (Max.) 3” Sch. 40
Centerline Radius (Min.) 2 x O
  (Max.) 17”
Degree of Bend   0-210”
Bending Speed   Variable 1.3 RPM
Programming   Touchscreen

Unlimited storage with USB

(12) Bends per program

Material Positioning Table   Consult factory
Voltage   220V or 440V 3ph
Length, Width, Height   20” x 34” x 47”
Weight   1,030 lbs.

TB130

Tube (Min.) ¼”
  (Max.) 5”
Pipe (Max.) 4” Sch. 40
Centerline Radius (Min.) 2 x O
  (Max.) 27 ½”
Degree of Bend   0-210”
Bending Speed   Variable .75 RPM
Programming   Touchscreen

Unlimited storage with USB

(12) Bends per program

Material Positioning Table   Consult Factory
Voltage   220V or 440V 3ph
Length, Width, Height   34” x 34” x 47”
Weight   1,330 lbs.
