Features

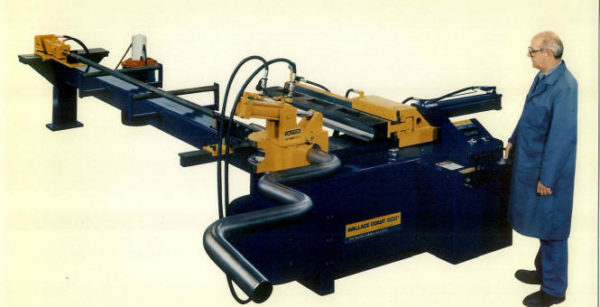

Single Axis benders are operator controlled (non-CNC) 1-axis benders – hydraulically powered. With the proper bending tools, they have the power, accuracy, and rigidity to produce wrinkle free bends, with a minimum of ovality and wall thinning, in pipe and tubing of various metals and alloys.
T-65
- 2″ Schedule 40, steel pipe
- 2-1/2″ OD, 11 gauge, steel tube
- Programmable NC bend stop
- Joystick control
- 180 degree bends
- Overhead clamp
- 12′ load length
- Maximum clearance – 6″
- Bend speed: 1RPM
- Return Speed: 5RPM
- Horsepower: 2
- Power: 220v, single phase
Mfg History:
If you’ve been in the pipe bending and fabrication business for long, then you’ve heard the name WALLACE COAST. Jesse Engineering teamed up with WALLACE COAST in the early 80’s. They had just acquired Coast Iron, including all the designs, casting patterns and even some of the key people. Today, Jesse Engineering continues to manufacture and sell the reliable overhead clamp style pipe benders first developed in the 1950’s at Coast Iron along with a complete line of pipe fabrication machinery.
