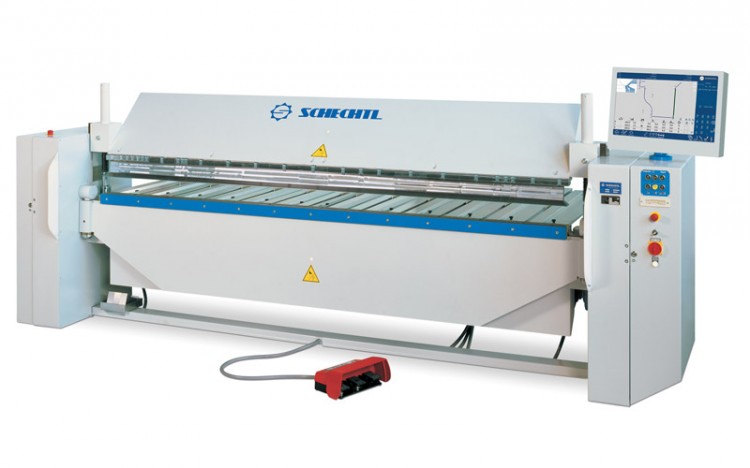

MAE Folder

Massively strong MAE sheet metal folder for precision manufacturers

Features

For precision manufacturers, the MAE folder gives massive strength with its spindle drive clamping and solid components. The MAE is the strongest machine on the market with a real industrial control that’s been field proven in shops from upper Canada to the Gulf of Mexico. The massive backgauge and solid reinforced folding beam are the most massive in the business but still easy on the operator. The MAE is also available in several different sizes and capacities.

  • iFold swipe technology, drag and draw, touch 2 create
  • Gauge rail, Thompson rail and ball screw
  • Hardened stop and backgauge pans
  • Click on tooling

MAE 3100 MACHINE CAPACITIES

  • Working Length 122″
  • Capacity Mild Steel          11 ga
  • Capacity Aluminum          .183″
  • Capacity Stainless            14 ga
  • Upper Beam Stroke         8.8″
  • Folding Beam Speed        70°/sec.
  • Folding Beam Arc, with 20°          0°-160°
  • Upper Beam Speed          1.5″/sec.
  • Backgauge Depth             39.5″
  • Backgauge Accuracy        ±.004
  • Electrics – 3 phase, 60 Hz @ 20 amps       230V
  • Weight  9,460 lbs.
  • Length   167″
  • Depth    70.5″
  • Height   62″
