Bench Punches – Hand Tools
Features
Roper Whitney punching tools can be what makes the difference in your shop: with over 100 years in operation, Roper Whitney has a reputation for delivering quality product for all applications.
MEDIUM DUTY
Medium Duty Bench Punches are similar in operating design and capacity to the Medium Duty Roller Bearing Portable Punches described here. However, in addition to stationary mounting, they also provide greater throat dimensions and a slightly broader range of punch and die sizes.
- Maximum Rated Capacities – No. 16 – 7.3 tons, No. 17 – 5 tons
- Linear Rolling Bearing Cam Operation
- Standard and Deep Throat Options (up to 6 1/2″)

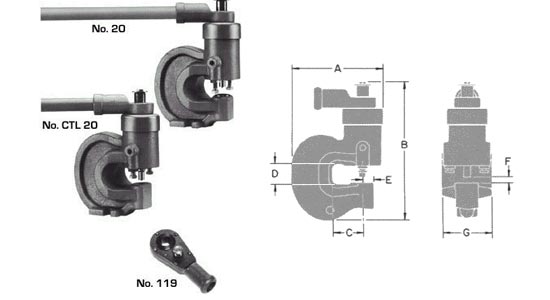

HEAVY DUTY
Heavy Duty Portable Punches are for heavy punching requirements. They operate through ball bearing action and rotary operating motion. While considered portable, they are equally adept as stationary bench mounted tools.
- Maximum Rated Capacities – No. 20 and CTL 20-20 tons
- Rotary Ball Bearing Operation (360 degrees equals 1/2 inch punch movement)
DEEP THROAT
This accurate punch is ideal for prototype, short production runs and model shops. The adjustable die shoe permits the proper alignment of close fitting punches and dies to accommodate very thin materials, as well as heavier stock. The option of a cabinet base, and a 12″ square gauge work table to extend their usefulness and is provided with standard equipment as indicated below.
- Maximum Rated Capacities – 4 tons
- Linear Hand Operation
- Deep Throat (Punch holes up to 12″ from edge of material)
- Work Heavy to Ultra Light Materials
Roper Whitney punching tools are the perfect mix of versatility, and durability.
