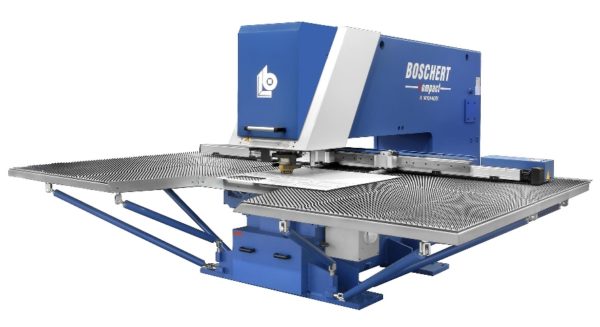

CP Series Punching Machinery

CNC Punching Machines with 360 degree ram rotation

Features

 The three configurations of Boschert’s CP-R series punching machines feature 360⁰ ram rotation adding full auto-indexing to every tool, including RevoTool, our multi-tool solution. The seven-way Revotool was especially constructed for this model. In addition to six tools with a diameter of 16 mm each, with a slitting tool of 5 x 30 mm it is possible to punch nearly every contour, allowing complete processing of the sheet without changing tools.



CP Series – CNC Punching Machines

  • Maximum sheet length – 32′
  • Max. sheet thickness- 1/4″ w/ standard clamps, 1/2″ with special clamps, 1/4″ w/ RevoTool.
  • Max. punching force – 36 tons (optional 50 tons)
  • Max. workpiece weight – 440lbs.
  • Max. punching – Standard hydraulics- 400SPM, High Speed hydraulics- 800SPM
  • Max. punch diameter – 4″
  • Max. stroke length – 3.54″
  • RevoTool positions – 4, 6,7, or 8
  • Tool change time, manual 10-15 sec.
  • Tool change time, RevoTool 2-4 secs.
  • Hydraulic motor – 7.5/15Hp
  • Comp. air requirement min. 4.5 bar/65psi
  • Hydraulic oil resv. – 115 liter/160 liter high speed

CP-R Series – CNC Punching Machines

  • Max. sheet length – 32′
  • Max. sheet thickness – 1/4″ w/ standard clamps, 1/2″ w/special clamps, 1/4″ w/ RevoTool clamps
  • Max. punch force – 36 tons, Optional (non-rotation only) 50 tons
  • Max. workpiece weight – 440 lbs.
  • Max punching speed – 400spm w/ standard hydraulics, 800spm w/ High speed (option w/ oil chiller)
  • Max. punch diameter – 4″
  • Max. stroke length – 3.54″
  • RevoTool positions – 4,6,7 or 8
  • Tool change time – manual – 10-15 secs., RevoTool – 2-4 secs.
  • Hydraulic Motor – 7.5/15Hp
  • Comp. air requirement – min 4.5 bar/65psi
  • Hydrualic oil resv. – 115 liter/160 liter high speed

MP Series – CNC Punching Machines

  • Max. sheet length – 33′
  • Max. sheet thickness – 1/2″
  • Max. punching force – 36 tons
  • max. workpiece weight – 440 lbs
  • Max. punch diameter – 4″
  • Max. stroke length – 3.5″
  • Tool change time – Auto – 5 sec.
  • Tool change time – Revo (4,6,7 or 8 tools) 2 sec.
  • Prog. Parts Chute size – 8″ x 12″
  • Rotation – Full Step-less Rotation – 360 degrees, Rotation Axis speed 45 RPM
  • Positioning Accuracy – +/-0.004″
  • Repeat-ability – +/-0.001″
  • Control – Boschert Graphic w/ RS232
  • Type of Drives – AC Digital Servo
  • Height of Table Above Floor – 35.4″
  • Width of Table (X-axis) – 158″
  • Depth of Table (Y-axis) – MP1250 – 63″
