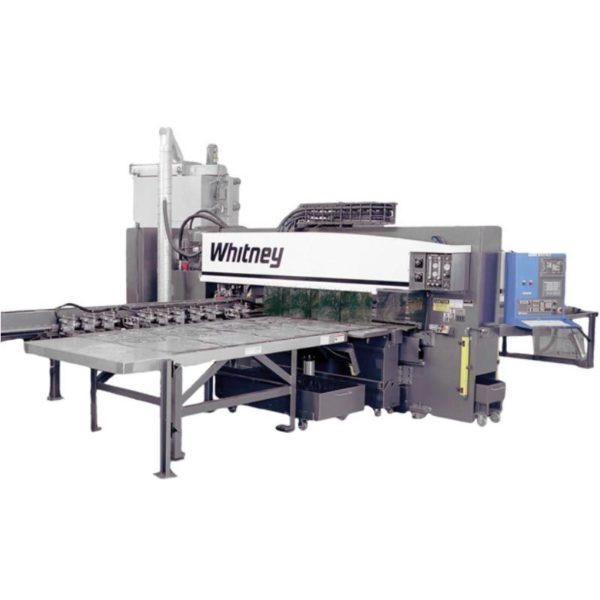

3400 Punch Plasma Combo

The Whitney 3400-Series Combination Machines use the fastest technologies to make parts – Punching & Plasma Cutting – 3 model options available: 3400XP, 3400Heavy, & 3400HXT

Features

3400XP, 3400Heavy, & 3400HXT Punch-Plasma Machines are…

  • Affordable—less investment than laser machines;
  • Machined Quality Holes—with the ProPunch process
  • Productive—out-produce lasers or plasma tables up to 3x
  • Reliable—engineered and built with famous Whitney strength and quality
The 40 TON PUNCHING CAPACITY allows the 3400XP to:
  • Punch larger hole sizes in a given material type and thickness
  • Punch holes in higher tensile strength materials
  • Punch thicker materials



INCLUDED EQUIPMENT

  • Siemens 840DSL CNC 3-Axis Positioning / Contouring Control
  • Pendant mounted operator’s station
  • Windows XP Operating System
  • Alpha/Numeric panel and Windows keyboard with trackball
  • 5 MB part program and system shared memory
  • USB Interface
  • 10.4″ High Resolution Color LCD Monitor
  • Network Card, installed in the CNC Control
  • Automatic Tool Changing – total of (9) slots available for tooling cartridges
  • Programmable Small Parts Drop Door, 24″ x 60
  • Hypertherm MAXPRO200
  • Integrated Dust Collection System
  • Air intensifier for increasing shop air pressure as required for plasma cutting
  • Slag Chamber lined with refractory materials
  • Whitney Halo – plasma torch collision detection device
  • Hydraulic Work Clamp
  • Programmable Repositioning Assembly
  • Material Support Roller Tables
  • Hydraulic Pressure Switch Circuit
  • Programmable selection of punch/stripper height to allow for mill tolerance bowed material and forming tools
  • Hydraulic Power Unit, with 30 H.P. (22kw) drip-proof motor and hydraulic oil
  • Automatic Punch Lubrication, with reservoir
  • Remote Diagnostics Package
  • Software License for all software resident on the CNC

SPECS : 3400XP

  • PUNCHING FORCE: 40 Tons
  • MATERIAL THICKNESS: Minimum – .060″, Maximum – .500″
  • MAXIMUM PUNCH DIAMETER: 5.000″
  • PUNCHING CAPACITY A36 (60ksi / 410 MPa Shear Strength)
    • 0.250″ (6 mm): 4.703″ (shear)
    • 0.375″ (10 mm): 2.344″ (shear)
    • 0.500″ (12.7 mm): 1.406″ (shear)
  • PUNCHING HIT RATE: 125 HPM

SPECS : 3400HXT

  • PUNCHING FORCE: 55 Tons (75 Ton opt)
  • MATERIAL THICKNESS: Minimum – .060″, Maximum – .750″
  • MAXIMUM PUNCH DIAMETER: 5.000″
  • PUNCHING CAPACITY A36 (60ksi / 410 MPa Shear Strength)
    • 0.250″ (6 mm): 5.000″ (shear)
    • 0.375″ (10 mm): 3.234″ (shear)
    • 0.500″ (12 mm): 1.938″ (shear)
    • 0.625″ (16 mm): 1.234″ (shear)
    • 0.750″ (19 mm): 0.766″ (flat)
  • PUNCHING HIT RATE: 115 HPM

SPECS : 3400HEAVY

  • PUNCHING FORCE: 55 Tons
  • MATERIAL THICKNESS: Minimum – .060″ , Maximum – .750″
  • MAXIMUM PUNCH DIAMETER – 5.000”
  • PUNCHING CAPACITY A36 (60ksi / 410 MPa Shear Strength)
    • 0.250″ (6 mm): 5.000″ (shear)
    • 0.375″ (10 mm): 3.234″ (shear)
    • 0.500″ (12 mm): 1.938″ (shear)
    • 0.625″ (16 mm): 1.234″ (shear)
    • 0.750″ (19 mm):  0.766″ (flat)
  • PUNCHING HIT RATE: 125 HPM
